主要技術參數Main technical parameters

機械規格Mechanical specifications

單位Unit

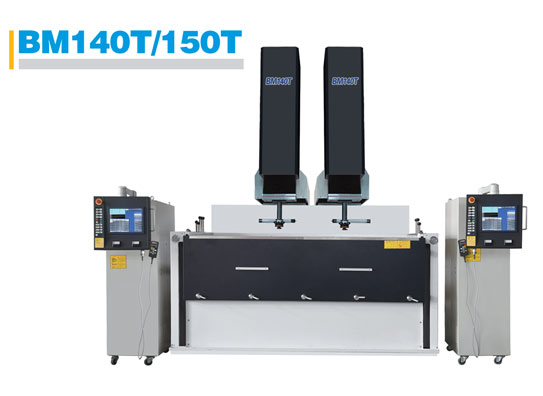

BM140T

BM150T

工作臺尺寸（長x寬）

Table size (length x width)

mm

1500x900

1600x1000

坐標軸行程

Axis travel

X軸X axis

mm

1450

1500

Y軸Y axis

mm

700

700

Z軸Z axis

mm

500

500

加工液槽內部尺寸

The internal dimensions of processing tank

mm

2300x1300x650

2400x1380x650

承重電極重量Maximum electrode weight

kg

100

≤100

工作臺承重量Table bearing weight

kg

5000

5000

電極板至工作臺面距離Distance from electrode plate  to working table

最小

Minimum

mm

600

650

最大

Maximum

mm

1150

1150

總輸入功率Total input power

KVA

10

10

輸入電源Input power

V

380

380

加工電流Maximum machining current

A

50

≤50

控制軸數The number of control axis

三軸三聯動Three axis three linkage

三軸三聯動Three axis three linkage
